The VLAN Paradox: When Your WiFi Network Exists in Limbo (Thanks to Cisco's "Stroke of Genius")

So, my perfectly functioning Cisco WS-C3750X-24P just got enriched with another Unifi AP. What a fantastic switch - all 24 ports with Power over Ethernet capability, allowing me to power my wireless access points directly from the switch without additional adapters or power injectors. The time had finally come to utilize all its networking goodness: trunking, native VLANs, and allowed VLANs with my Unifi APs.

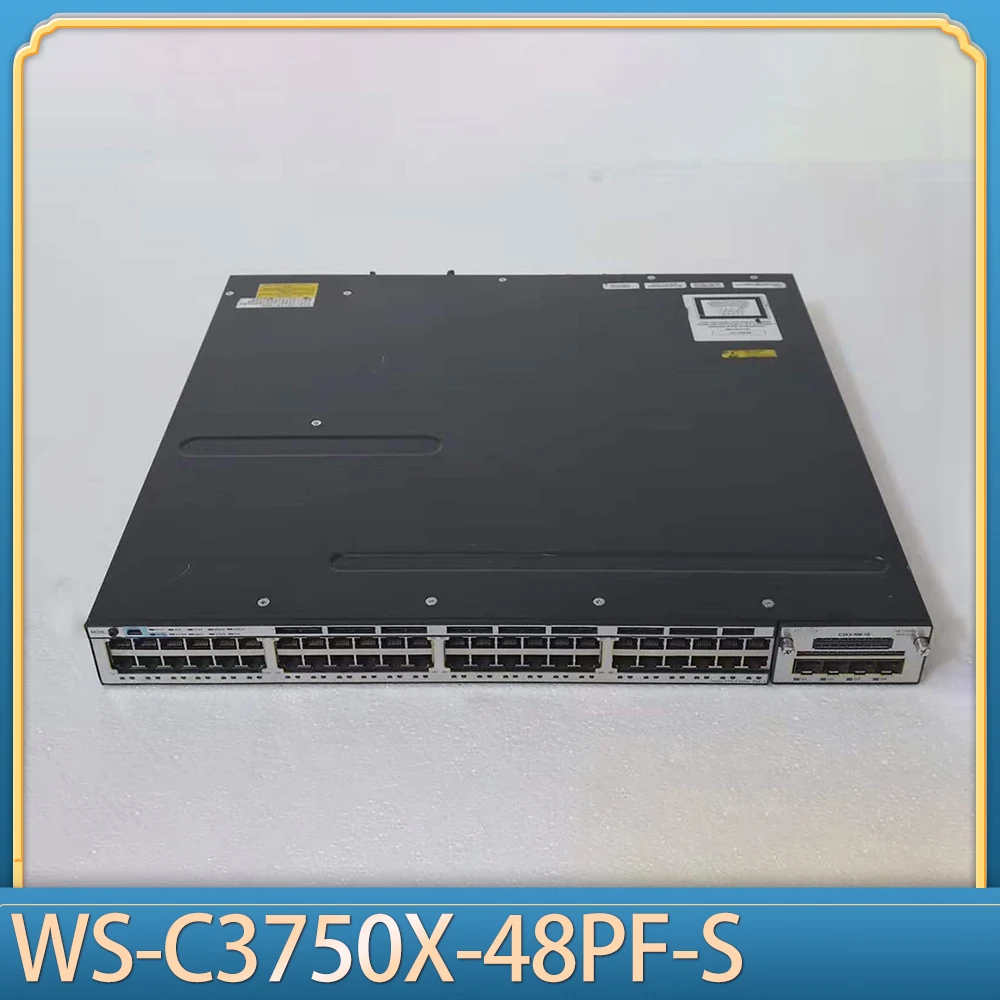

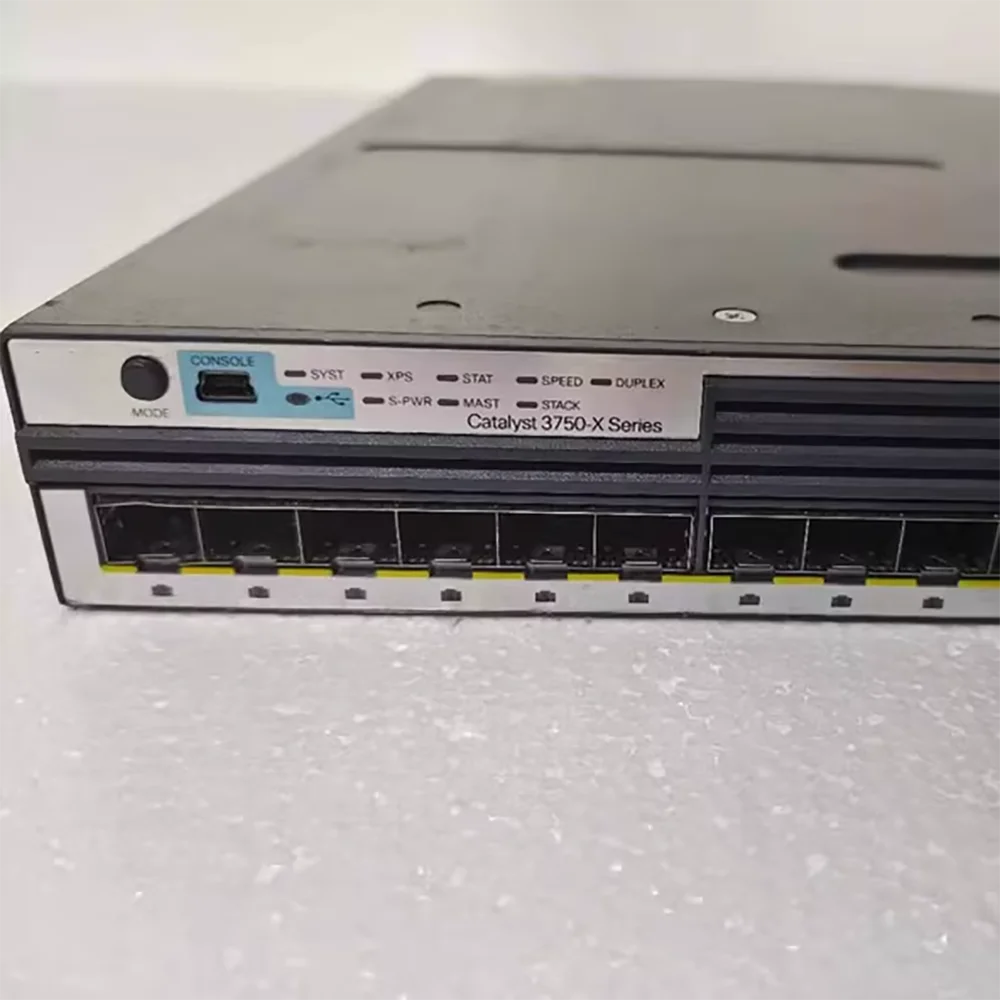

Do 48-portowego przełącznika zasilania Gigabit POE Cisco WS-C3750X-48PF-S - AliExpress

Smarter Shopping, Better Living! Aliexpress.com

aliexpress.

Everything was supposed to be tip-top – separate management networks, broadcasting different VLANs for home, IoT, guests, and so on. It was meant to be sophisticated networking, not just connecting "air to LAN" with an AP on a basic network.

Not suspecting anything, I reconfigured the port according to the documentation:

interface GigabitEthernet1/0/24
 switchport trunk encapsulation dot1q
 switchport trunk native vlan 103
 switchport trunk allowed vlan 103,106,107,108
 switchport mode trunk
 spanning-tree portfast

Perfect, right? Management on VLAN 103, and wireless clients on VLAN 106 and so on. The AP powered up nicely through PoE, its status LEDs lit up... and then... complete silence in the airwaves. No clients could connect. When I checked the switch, I discovered the bizarre reality - VLAN 106 was in a "down" state because no devices were connected to it yet. The classic catch-22 of networking was born: clients couldn't connect because the VLAN was down, and the VLAN was down because no clients were connected!

Of Course WiFi VLANs Should Just Work!

It should be blindingly obvious that if you want to deliver WiFi services, the associated VLAN should simply work! What kind of twisted logic requires physical cable clients for a wireless network to function? Yet here we are, stuck in this absurd situation where a WiFi VLAN without clients is treated as if it doesn't exist. This is the networking equivalent of the philosophical question: "If a tree falls in a forest and no one is around to hear it, does it make a sound?" Except in our case: "If a WiFi VLAN exists but has no clients yet, does it even function?"

The Technical Reality Behind the Madness

At the heart of this problem is a "feature" in Cisco switches called autostate. When a VLAN has no active physical interfaces assigned to it, the switch puts the VLAN SVI (Switched Virtual Interface) into a protocol down state. This makes sense for wired VLANs - why waste resources on a network segment nobody's using? But this logic breaks catastrophically for wireless networks.

Consider this scenario: You have access points connected to your switch via trunk ports in VLAN 103 (management), serving wireless clients on VLAN 106. Until the first client connects to the WiFi network, VLAN 106 remains in a protocol down state. But here's the catch-22: clients can't get DHCP addresses because the VLAN is down, and the VLAN won't come up until clients successfully connect!

This creates a classic "chicken and egg" problem. The first client connecting to your WiFi network essentially becomes a sacrificial pioneer, attempting to break through this logical impasse.

Solutions for This Absurdity

Several workarounds exist for this maddening situation:

1. Create a Dummy Port: Configure an unused physical port as an access port in your WiFi VLAN:

interface GigabitEthernet1/0/X
 switchport mode access
 switchport access vlan 106
 no shutdown
 description "DUMMY PORT TO KEEP VLAN 106 UP"

2. Use Phantom Ports: Some administrators configure non-existent (or future expansion) ports:

interface TenGigabitEthernet1/1/2
 description "DUMMY PORT TO KEEP VLAN 106 UP"
 switchport access vlan 106
 switchport mode access

Even if these ports don't physically exist, their presence in the configuration can sometimes trick the switch into keeping the VLAN up.

3. Add the VLAN to an Active Trunk: Ensure your WiFi VLAN is included on an active trunk port:

interface GigabitEthernet1/0/24
 switchport trunk allowed vlan add 106

4. Disable Autostate (on supported platforms, surprise):

interface Vlan106
 no autostate

The Philosophical Question

This situation raises a deeper question about network design philosophy. Should network infrastructure be reactive (coming online only when needed) or proactive (always ready to serve)? For critical services like WiFi, the answer seems obvious - yet we're still fighting with our equipment to make this happen.

Perhaps the most frustrating aspect is explaining this to non-technical stakeholders: "No, the WiFi network isn't working because... well, because nobody's connected to it yet." Try making that sound sensible in a business meeting!

Final Thoughts

In an ideal world, network engineers wouldn't need to create phantom ports or dummy interfaces to make wireless networks function properly. The switch would recognize the purpose of a VLAN and maintain its operational state appropriately. Until that day comes, we'll continue our creative workarounds, muttering under our breath about the absurdity of needing wired clients to make wireless work.

Remember: a WiFi VLAN is a WiFi VLAN! It's not a cabled network and shouldn't be treated as one. The sooner network equipment manufacturers recognize this distinction, the fewer gray hairs network administrators will develop.
