Building a Reliable Local NTP Server with GPS: Another Step Towards Self-Hosted Infrastructure
The improvement is staggering! We went from ~5-6 milliseconds accuracy with internet sources to just 82 microseconds with local GPS. That's over 60 times more accurate! This is stratum 1 time accuracy in my homelab!
After successfully implementing SDR (Software Defined Radio) in my home lab, I've taken another step towards complete infrastructure independence: deploying a local GPS-synchronized NTP server. Combined with SDR capabilities, this creates a truly resilient system capable of operating completely disconnected from the internet. Essential preparation for these uncertain times, if you ask me.

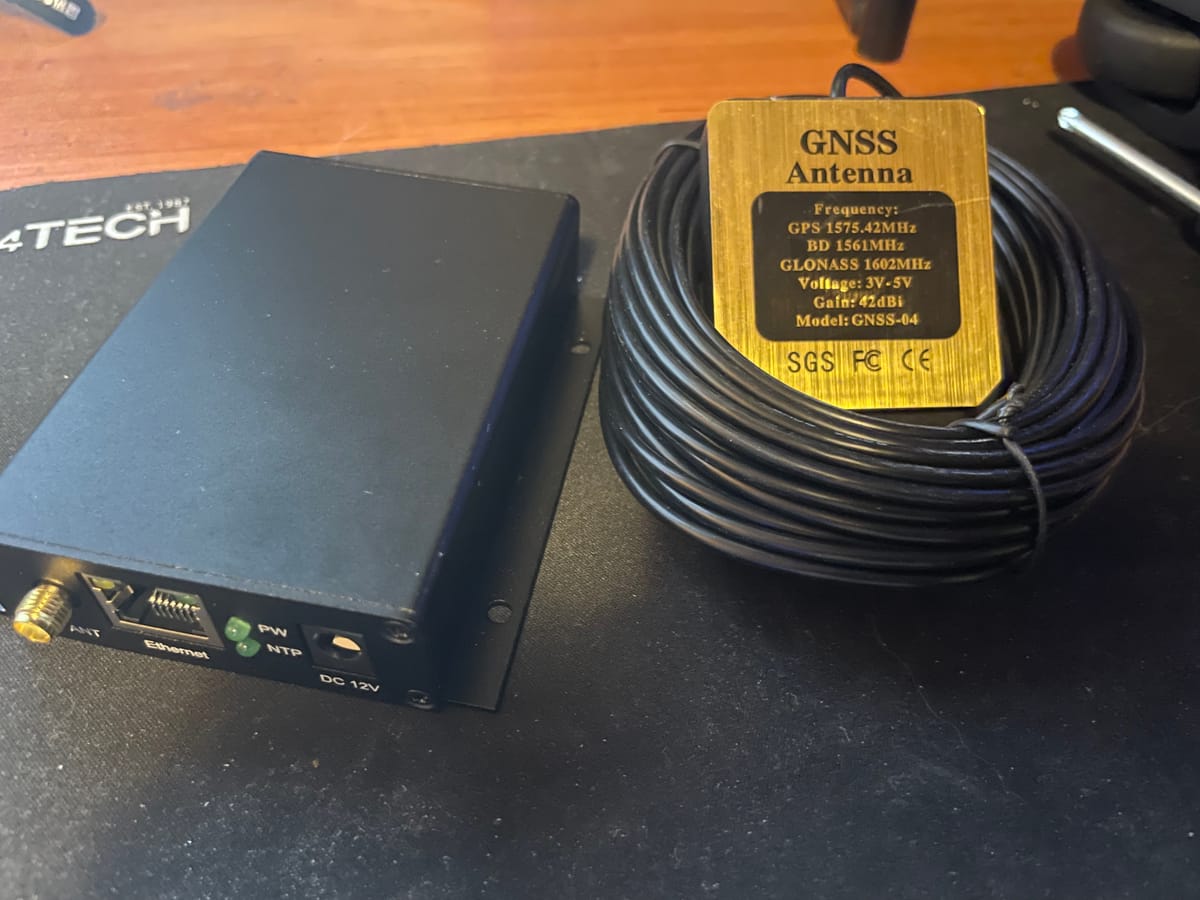

The device in question is the FC-NTP-MINI from AliExpress. A compact Chinese box with a GPS antenna that promises much more than just basic timekeeping.

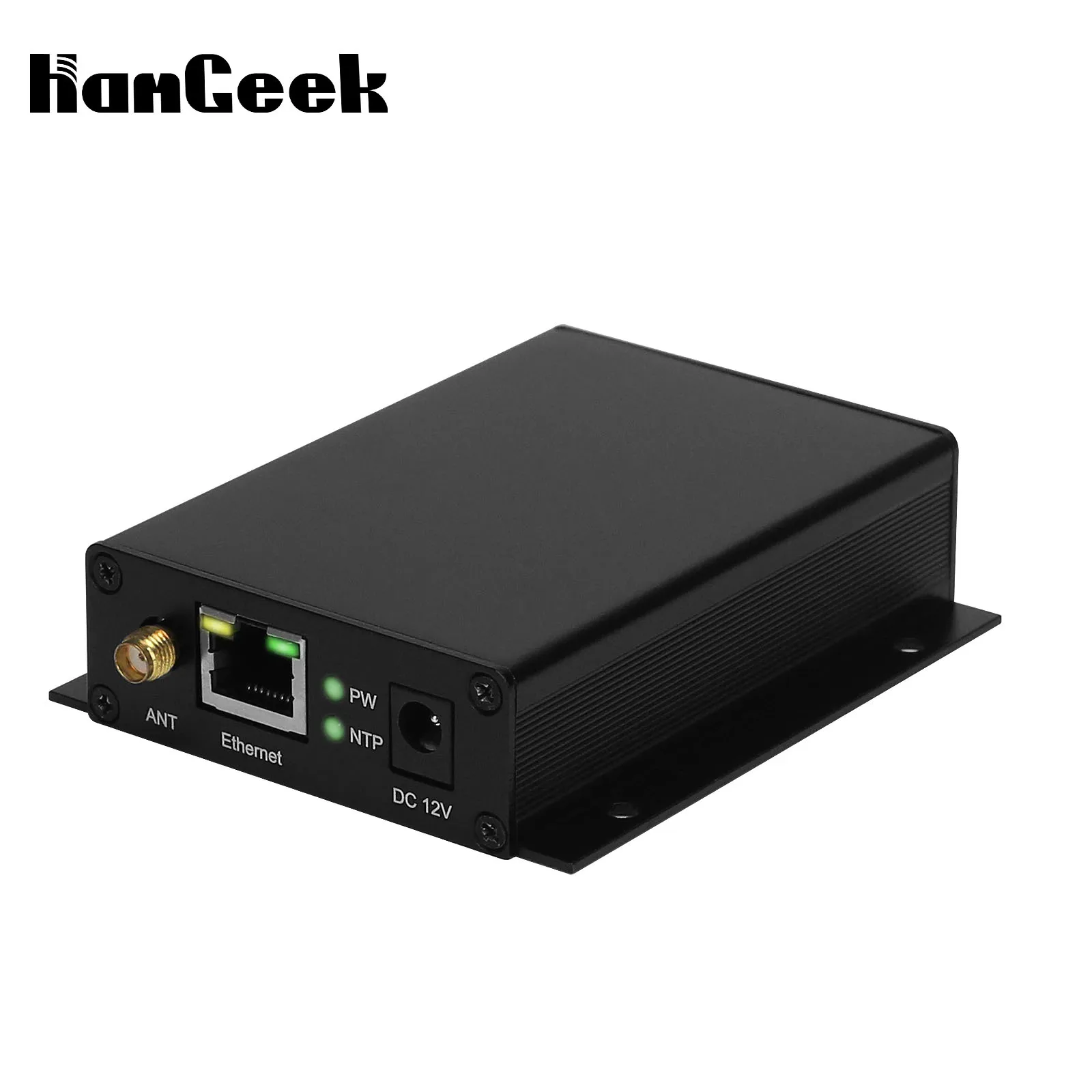

The Hardware: FC-NTP-MINI Specifications
The FC-NTP-MINI isn't just another GPS time server. It's a feature-packed device that surprised me with its capabilities. When the package arrived, I was genuinely amazed by how compact this thing is. The product photos on AliExpress don't do it justice at all. It's literally the size of a pack of cigarettes! The FC-NTP-MINI lives up to its name, making it easy to tuck away in any corner of your rack or network cabinet.
Multi-GNSS Support:
- GPS L1 (American standard)
- Beidou B1 (Chinese satellite navigation)
- GLONASS L1 (Russian positioning system)
- QZSS L1 (Japanese regional system)
This multi-constellation support means better accuracy and reliability. If GPS satellites are blocked by buildings or jammed, the device seamlessly switches to other systems. The acquisition times are impressive: hot start under 1 second, warm start under 33 seconds, cold start under 35 seconds.
Performance that Actually Matters:
- 6000 requests per second (this tiny box can handle enterprise-level loads)
- 100ns time accuracy (that's 0.0000001 seconds precision!)
- 0.5-2ms LAN synchronization accuracy (perfect for local network needs)
- 1W power consumption (runs 24/7 for pennies per month)
- DC 12V input (compatible with standard network equipment power supplies)
- Industrial temperature range (-40°C to +85°C)
- Compact size (80 x 23.8 x 90 mm)
Beyond Basic NTP: Understanding SNTP
The device supports both NTP and SNTP (Simple Network Time Protocol). What's the difference? SNTP adopts a much simpler approach to network clock synchronization, using time stepping where the server essentially 'shouts' the time at the client at regular intervals, rather than NTP's continuous adjustments.
While SNTP is perfect for IP cameras, IoT devices, and other endpoints that don't need microsecond accuracy, I'm using full NTP for critical infrastructure. The beauty is that this device supports both protocols, serving simplified time to cameras while providing precision timing to servers.
Additional Features:
- Web UI for easy configuration and monitoring
- MD5 authentication support for secure time distribution
- NMEA0183 output via TCP (raw GPS data for other applications)
- BROADCAST mode (efficient time distribution to multiple clients)
The NMEA output is particularly interesting. It means this device can double as a GPS data source for other projects, like AIS ship tracking or weather station positioning.
Why Local NTP Matters More Than You Think
The VM Time Drift Nightmare
If you've ever managed multiple VMs or containers, you've probably encountered the dreaded time drift issue. Picture this scenario: you're running a backup job, and suddenly your monitoring system shows "Remaining time: three minutes ago." This isn't a glitch in the Matrix. It's what happens when your VM and host disagree about what time it is.
The problem is particularly acute with modern low-power homelab setups. My N100 and N200-based systems are incredibly power-efficient, but this efficiency comes at a cost: they're highly susceptible to time drift under heavy CPU load. When these processors hit 100% utilization, timekeeping becomes a secondary concern for the system.
Under heavy load, I've observed time drifts exceeding one minute. When this happens, NTP's gradual time adjustment (slew) becomes ineffective, and you need a time step correction. But if your internet packets are also getting dropped due to load, you're in trouble.
When DNS Fails, Time Fails
Recently, I experienced a perfect storm: my AdGuard DNS resolver crashed, and suddenly my ntpd couldn't resolve tempus1.gum.gov.pl. Without DNS, no NTP. Without NTP, cascading failures across the infrastructure. This single point of failure highlighted why local time sources are essential.
Real-World Use Cases Where Precision Matters
1. The Local 2FA Catastrophe Imagine having LOCAL two-factor authentication deployed across your infrastructure, and suddenly it's not working! Why? Because TOTP (Time-based One-Time Passwords) relies on perfect time synchronization. A 30-second drift means your 2FA tokens are invalid. Your secure infrastructure has just locked you out of itself.
2. Security Cameras Going Rogue Without reliable NTP, IP cameras start living in their own temporal reality. One camera thinks it's 2:00 AM, another believes it's last Tuesday. Good luck correlating those security events.
3. Trading API Authentication Financial APIs are particularly sensitive to time discrepancies. A mere 3-second drift can trigger authentication failures with errors like "timeframe received window exceeded."
First Impressions: Setup and Configuration
The WebUI: Painfully Simple (In a Good Way)
As predicted, the GUI is refreshingly straightforward. No bloat, no unnecessary features. Just pure functionality. After connecting to the default IP (192.168.0.100), you're greeted with a clean interface that gets straight to the point.
Important first step: The device defaults to UTC+8 timezone (Chinese time). Make sure to change this to your local timezone immediately. In my case, UTC+2 for Poland.
GNSS Status shows real-time satellite tracking:
Receiver: Antenna OK
Constellations in use: GPS+BeiDou+GLONASS
SVs Used: 15
GPS (used/viewed): 9/11
BeiDou (used/viewed): 3/3
GLONASS (used/viewed): 3/5System Information provides:
Product Name: FC-NTP-MINI
Firmware Version: 3.6.0
Current Time (UTC): 2025/06/25 12:43:03
Current Time (Local): 2025/06/25 14:43:03Configuration Options

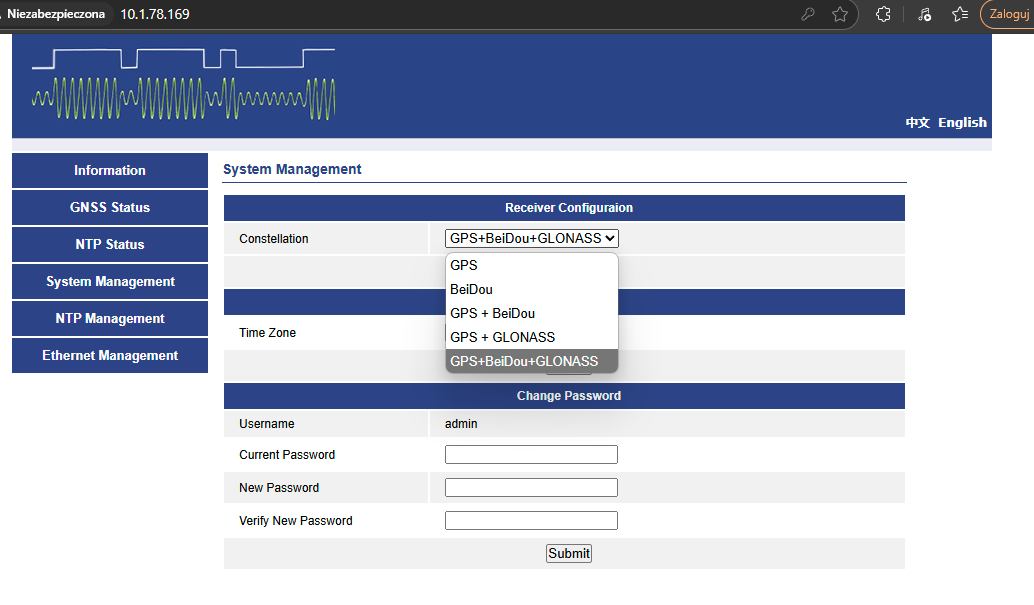

You can choose from several constellation modes, but obviously the best choice is GPS+BeiDou+GLONASS (Full Hybrid). The NTP Management section includes broadcast options for networks with many clients, and MD5 authentication for security-conscious users.
Migration from ntpd to chrony
After extensive testing, I've migrated all systems from the traditional ntpd to chrony. Here's why:
- Better accuracy in virtual environments
- Faster synchronization after boot
- Superior handling of intermittent connections
- More robust leap second handling
- Better performance with high packet loss
- Predictable step/slew behavior (unlike ntpd's sometimes erratic corrections)
Yes, time steps can cause minor disruptions. A log entry might appear out of order, a scheduled job might trigger twice. But these small inconveniences are a worthwhile trade-off for the greater good: ensuring your APIs remain authenticated, your backups complete successfully, and your infrastructure stays operational.
Real-World Configuration and Results
My chrony.conf configuration:
# Clock drift file
driftfile /var/lib/chrony/drift
# Sync RTC with system time
rtcsync
# FC-NTP-MINI - Local GPS NTP server (highest priority)
server 10.1.78.169 iburst prefer
# External NTP servers (fallback)
server tempus1.gum.gov.pl iburst
server tempus2.gum.gov.pl iburst
server 0.pl.pool.ntp.org iburst
server 1.pl.pool.ntp.org iburst
server 2.pl.pool.ntp.org iburst
# Allow LAN clients 10.1.78.0/24 to use this NTP server
allow 10.1.78.0/24
# If offset > 1 second - correct immediately
makestep 1.0 -1
# Other settings
maxupdateskew 100.0
minsamples 6
maxsamples 10
local stratum 10
pidfile /var/run/chronyd.pid
logdir /var/log/chrony
log tracking measurements statistics
logchange 0.5Before Adding Local GPS (Internet-only sources)
chronyc tracking showed:
$ chronyc tracking
Reference ID : C292FB64 (tempus1.gum.gov.pl)
Stratum : 2
Ref time (UTC) : Wed Jun 25 12:45:28 2025
System time : 0.000000695 seconds slow of NTP time
Last offset : +0.007955262 seconds
RMS offset : 0.002647618 seconds
Frequency : 122.736 ppm slow
Residual freq : +6.408 ppm
Skew : 1.119 ppm
Root delay : 0.008763653 seconds
Root dispersion : 0.003691981 seconds
Update interval : 257.7 seconds
Leap status : Normalchronyc sources showed ~5-6ms accuracy:
$ chronyc sources -v
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current best, '+' = combined, '-' = not combined,
| / 'x' = may be in error, '~' = too variable, '?' = unusable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* tempus1.gum.gov.pl 1 7 377 100 +598us[+8554us] +/- 5397us
^+ tempus2.gum.gov.pl 1 7 377 20 +318us[ +318us] +/- 5865us
^- time.cloudflare.com 3 7 377 45 +8403us[+8403us] +/- 18ms
^- time.cloudflare.com 3 7 377 28 +8466us[+8466us] +/- 18ms
^- tel50.oa.uj.edu.pl 2 10 377 51m -20ms[-9219us] +/- 67msAfter Adding Local GPS
chronyc tracking now shows:
$ chronyc tracking
Reference ID : 0A014EA9 (FC-NTP-MINI)
Stratum : 2
Ref time (UTC) : Wed Jun 25 13:27:57 2025
System time : 0.000000009 seconds fast of NTP time
Last offset : +0.000287045 seconds
RMS offset : 0.000287045 seconds
Frequency : 122.829 ppm slow
Residual freq : +164.558 ppm
Skew : 0.652 ppm
Root delay : 0.000140594 seconds
Root dispersion : 0.008288948 seconds
Update interval : 1.6 seconds
Leap status : Normalchronyc sources shows DRAMATIC improvement:
$ chronyc sources -v
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current best, '+' = combined, '-' = not combined,
| / 'x' = may be in error, '~' = too variable, '?' = unusable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^* FC-NTP-MINI 1 6 17 52 +3281ns[ +290us] +/- 82us
^- tempus1.gum.gov.pl 1 6 17 51 -1736us[-1736us] +/- 5537us
^- tempus2.gum.gov.pl 1 6 17 52 -2432us[-2145us] +/- 6156us
^- tel50.oa.uj.edu.pl 2 6 17 51 -15ms[ -15ms] +/- 57ms
^- 193.59.134.156 2 6 17 52 -2187us[-1900us] +/- 6947us
^- host-168-148.prnet.pl 2 6 17 52 -4788us[-4501us] +/- 20ms
The Results Speak for Themselves
The improvement is staggering! We went from ~5-6 milliseconds accuracy with internet sources to just 82 microseconds with local GPS. That's over 60 times more accurate! The FC-NTP-MINI is now marked with a star (*) indicating it's the primary time source, while the internet servers have become backups (-).
Look at those numbers:
- Root delay dropped from 8.7ms to 0.14ms
- System time offset improved from milliseconds to single-digit nanoseconds
- The "+/- 82us" error margin is incredibly tight
This is stratum 1 time accuracy in my homelab! No internet latency, no routing delays, just pure GPS-synchronized time.
Client Configuration
For other machines on your network:
server 10.1.78.169 iburst prefer
server tempus1.gum.gov.pl iburst
server tempus2.gum.gov.pl iburstDHCP Integration (ISC DHCP):
option ntp-servers 10.1.78.169, tempus1.gum.gov.pl;Network Security: Trust but Verify (Especially Chinese Firmware)
Now, let's talk about the elephant in the room. This is a Chinese device with firmware that probably hasn't seen a security audit since... well, ever. The "drivers" are hosted on Google Drive (yes, really), and who knows what's lurking in that code.
Wait, drivers for NTP? Seriously? It's a network time protocol - you literally just point your clients at an IP address or configure it via DHCP. What kind of "drivers" does time synchronization need? I'm not even going to investigate what those Google Drive files contain. Some mysteries are better left unsolved.
Solution: Network isolation, my friend. VLANs exist for a reason!
I've placed the FC-NTP-MINI in its own isolated VLAN, along with other "questionable" devices like Chinese IP cameras and IoT gadgets. This VLAN has strict firewall rules: allow NTP queries in, block everything else out. No internet access whatsoever.
The beauty is that you can completely air-gap this device from the internet and it'll work perfectly as a local time source. GPS satellites don't care about your firewall rules! In fact, disconnecting it from the internet is probably the smart move. After all, precise time is one thing, but becoming part of a botnet is quite another.
You do have VLANs, right? This is a homelab after all. If you're running everything flat on 192.168.1.0/24, we need to have a different conversation entirely! 😉
Conclusion
Adding the FC-NTP-MINI GPS-synchronized NTP server to my self-hosted infrastructure has eliminated an entire class of time-related problems. With its multi-GNSS support (GPS, Beidou, GLONASS, QZSS), 6000 requests/second capability, and dual NTP/SNTP protocol support, this $50 device punches well above its weight class.
The investment in local time infrastructure pays dividends in:
Reliability: No more time-related failures during internet outages
Accuracy: 82 microseconds instead of 5+ milliseconds (that's 60x improvement!)
Independence: Reduced reliance on external infrastructure
Performance: Eliminated WAN latency from time synchronization
Versatility: NMEA output for GPS-based projects, WebUI for easy management
Combined with my existing SDR setup, I'm building towards a truly resilient, self-sufficient home lab that can operate independently of external services. The 1W power consumption means it can run indefinitely on a small UPS, ensuring time accuracy even during extended power outages.
Next steps include exploring the NMEA TCP output for maritime AIS projects, setting up a second GPS time source for redundancy, and creating comprehensive monitoring dashboards that track synchronization accuracy across all infrastructure components.
